管夾和管托架 |

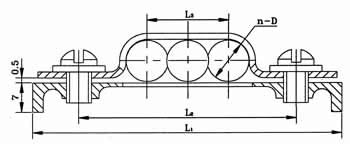

| ● 管夾 |
|
代號（訂貨號） |
管子外徑D |
夾管數n |
L1 |
L2 |
L3 |
重量（kg） |
DJ619.1.00 |
6
|
1 |
40 |
24 |
- |
0.02 |
DJ619.2.00 |
2 |
47 |
31 |
7 |
0.03 |
DJ619.3.00 |
3 |
54 |
38 |
14 |
0.03 |
DJ619.4.00 |
4 |
61 |
45 |
21 |
0.03 |
DJ619.5.00 |
5 |
68 |
52 |
28 |
0.03 |
DJ619.6.00 |
6 |
75 |
59 |
35 |
0.04 |
| ? |
? |
? |
? |
? |
? |
? |
DJ620.1.00 |
8
|
1 |
44 |
28 |
- |
0.02 |
DJ620.2.00 |
2 |
54 |
38 |
9 |
0.03 |
DJ620.3.00 |
3 |
62 |
46 |
18 |
0.03 |
DJ620.4.00 |
4 |
71 |
55 |
27 |
0.04 |
DJ620.5.00 |
5 |
80 |
64 |
36 |
0.04 |
DJ620.6.00 |
6 |
89 |
73 |
45 |
0.04 |
DJ620.7.00 |
7 |
98 |
82 |
54 |
0.04 |
DJ620.8.00 |
8 |
107 |
91 |
63 |
0.05 |
| ? |
? |
? |
? |
? |
? |
? |
DJ621.1.00 |
10
|
1 |
46 |
30 |
- |
0.03 |
DJ621.2.00 |
2 |
58 |
42 |
11 |
0.03 |
DJ621.3.00 |
3 |
68 |
52 |
22 |
0.04 |
DJ621.4.00 |
4 |
79 |
63 |
33 |
0.04 |
| ? |
? |
? |
? |
? |
? |
? |
DJ631.1.00 |
14
|
1 |
54 |
38 |
- |
0.04 |
DJ631.2.00 |
2 |
70 |
54 |
15 |
0.04 |
DJ631.3.00 |
3 |
84 |
68 |
30 |
0.05 |
|
| 標記示例：夾管數n為1，管子外徑D為6的管夾；管夾1×Φ6 DJ619.1.00 |

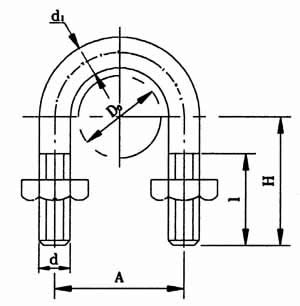

| ● U型螺栓 |
|
代號 |
管子外徑(do) |
A |
H |
d |
l |
d1 |
螺母個數 |
重量 |
DJ628.1.00 |
14 |
21 |
24.5 |
M6 |
18 |
6 |
2 |
0.022 |
DJ628.2.00 |
18 |
25 |
27 |
0.024 |
DJ628.3.00 |
22 |
31 |
34.5 |
M8 |
25 |
8 |
0.058 |
DJ628.4.00 |
28 |
37 |
38.5 |
0.066 |
DJ628.5.00 |
34 |
44 |
40 |
M10 |
10 |
0.072 |
DJ628.6.00 |
42 |
54 |
47 |
0.132 |
DJ628.7.00 |
48 |
60 |
49 |
0.142 |
DJ628.8.00 |
60 |
74 |
56 |
M12 |
28 |
12 |
0.203 |
DJ628.9.00 |
219 |
248 |
149 |
M20 |
70 |
20 |
4 |
1.946 |
DJ628.11.00 |
76 |
90 |
80 |
M12 |
50 |
12 |
0.324 |
DJ628.12.00 |
89 |
103 |
80.5 |
M16 |
60 |
16 |
0.354 |
DJ628.13.00 |
114 |
132 |
97 |
0.766 |
DJ628.14.00 |
140 |
158 |
104 |
0.866 |
DJ628.15.00 |
168 |
186 |
116 |
0.966 |
DJ628.16.00 |
273 |
302 |
173 |
M20 |
70 |
20 |
2.276 |
DJ628.17.00 |
325 |
352 |
199 |
2.598 |
DJ628.18.00 |
368 |
402 |
222 |
M24 |
24 |
4.268 |
DJ628.19.00 |
406 |
436 |
278 |
M24 |
95 |
24 |
4 |
4.648 |
|
| 標記示例：U型螺栓14 DJ628.1.00 |
|
|
